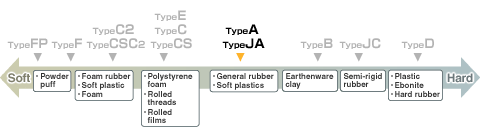

ASKER DUROMETER 日本 ASKER 橡膠硬度計 ASKER_table

TYPE

型號


圖片

Specification

特點

Product details

詳細資料

1

ASKER Durometer Type A

ASKER 橡膠硬度計 型號: A

ASKER_A The Type A Durometer for general rubber (Normal hardness )

The mainstream product used world-wide for measuring various kinds of rubbers, and specified in the standards of JIS K 6253, ASTM D 2240, ISO 7619, DIN53505, etc.

一般橡膠 , 錐形測頭

2

ASKER Durometer Type AL

ASKER 橡膠硬度計 型號: AL

ASKER_AL The Type A Durometer for general rubber (Normal hardness )

The mainstream product used world-wide for measuring various kinds of rubbers, and specified in the standards of JIS K 6253-3, ASTM D 2240, ISO 48-4, DIN53505, etc.

一般橡膠 , 錐形測頭

3

ASKER Durometer Type D

ASKER 橡膠硬度計 型號: D

ASKER_D The Type D Durometer for hard rubber (high hardness) and plastics

Used world-wide for measuring hard rubbers and plastics, and specified in the standards of JIS K 6253-3, ASTM D 2240, ISO 48-4, DIN53505, etc.

一般橡膠 , 錐形測頭

4

ASKER Durometer Type DL

ASKER 橡膠硬度計 型號: DL

ASKER_DL The Type D Durometer for hard rubber (high hardness) and plastics

Used world-wide for measuring hard rubbers and plastics, and specified in the standards of JIS K 6253-3, ASTM D 2240, ISO 48-4, DIN53505, etc.

一般橡膠 , 錐形測頭

5

ASKER Durometer Type C

ASKER 橡膠硬度計 型號: C

ASKER_C The ASKER Durometer Type C,produced since 1956, is our original brand durometer, and is a de facto standard in the world for the measurement of soft rubber, sponges, etc.

Widely used for measuring soft rubber, sponges, and other foam elastomers, as well as rolled-threads, -films and textile windings (yarn packages)..

一般橡膠 , 錐形測頭

6

ASKER Durometer Type C1L

ASKER 橡膠硬度計 型號: C1L

ASKER_C1L The ASKER Durometer Type C,produced since 1956, is our original brand durometer, and is a de facto standard in the world for the measurement of soft rubber, sponges, etc.

Widely used for measuring soft rubber, sponges, and other foam elastomers, as well as rolled-threads, -films and textile windings (yarn packages)..

一般橡膠 , 錐形測頭

7

ASKER Durometer Type E

ASKER 橡膠硬度計 型號: E

ASKER_E The ASKER Durometer Type E for soft rubber (low hardness), as specified by JIS K 6253-3 and ISO 48-4. The application is the same as the standard ASKER Durometer Type C.

Widely used for measuring soft rubber, sponges, and other foam elastomers, as well as rolled-threads, -films and textile windings (yarn packages)..

一般橡膠 , 錐形測頭

8

ASKER Durometer Type EL

ASKER 橡膠硬度計 型號: EL

ASKER_EL The ASKER Durometer Type E for soft rubber (low hardness), as specified by JIS K 6253-3 and ISO 48-4. The application is the same as the standard ASKER Durometer Type C.

Widely used for measuring soft rubber, sponges, and other foam elastomers, as well as rolled-threads, -films and textile windings (yarn packages)..

一般橡膠 , 錐形測頭

9

ASKER Durometer Type C2

ASKER 橡膠硬度計 型號: C2

ASKER_C2 The ASKER Durometer Type C2 for soft rubber, sponges, and other foam elastomers, as well as rolled-threads (yarn packages), etc. It is suitable for soft materials difficult to measure using the ASKER Type C.

一般橡膠 , 錐形測頭

10

ASKER Durometer Type C2L

ASKER 橡膠硬度計 型號: C2L

ASKER_C2L The ASKER Durometer Type C2 for soft rubber, sponges, and other foam elastomers, as well as rolled-threads (yarn packages), etc. It is suitable for soft materials difficult to measure using the ASKER Type C.

一般橡膠 , 錐形測頭

11

ASKER Durometer Type F

ASKER 橡膠硬度計 型號: F

ASKER_F The ASKER Durometer Type F for much softer specimens (low hardness) gives accurate readings as it features a larger indentor and pressure foot.

The durometer exclusively for various foam materials such as urethane foam, sponge, etc. There is no need to press the durometer into the specimen, but just to place it onto the specimen. As it is soft, the weight of the durometer constitutes the pressure to the specimen.

一般橡膠 , 錐形測頭

12

ASKER Durometer Type FP

ASKER 橡膠硬度計 型號: FP

ASKER_FP The ASKER Durometer Type F for much softer specimens (low hardness) gives accurate readings as it features a larger indentor and pressure foot.

Pressure foot plate is designed to be smaller in dimensions and an oval shape in accordance with the size of powder puff.

The ASKER Durometer Type F is specified exclusively for powder puff. There is no need to press the durometer into the specimen, but just to place it onto the specimen. As it is soft, the weight of the durometer constitutes the pressure to the specimen.It has recently been used additionally for gel materials, soft rubber rolls, etc.

一般橡膠 , 錐形測頭

13

ASKER Durometer Type CS

ASKER 橡膠硬度計 型號: CS

ASKER_CS The ASKER Durometer Type CS is designed to decrease false readings of measurements for polystyrene foam by simultaneously deforming multiple granular foams.

The larger indentor and stronger spring than those of the ASKER Type C enable the stable measurement of large-sized granular particles such as polystyrene foam.

一般橡膠 , 錐形測頭

15

ASKER Durometer Type CSC2

ASKER 橡膠硬度計 型號: CSC2

ASKER_CSC2 The ASKER Durometer Type CSC2 for ultra soft (low hardness) and spongy surface materials than those covered by the measuring scope of ASKER Type C and C2, such as soft rubbers, rubber rolls, etc.

It is suitable for foam materials such as soft sponges, plastic foams, etc as the cylindrical indentor presses the specimen across the extended surface.

一般橡膠 , 錐形測頭

16

ASKER Durometer Type B

ASKER 橡膠硬度計 型號: B

ASKER_B The ASKER Durometer Type B for semi-rigid rubber (from normal hardness to high hardness), as specified by ASTM D2240.

It is used for measuring harder specimens, such as earthenware clay or mossed pottery, than the Type A durometer, because the indentor is spring-loaded as in the ASKER Type A, but is a conical shape as in the ASKER Type D.

一般橡膠 , 錐形測頭

17

ASKER Durometer Type BL

ASKER 橡膠硬度計 型號: BL

ASKER_B The ASKER Durometer Type B for semi-rigid rubber (from normal hardness to high hardness), as specified by ASTM D2240.

It is used for measuring harder specimens, such as earthenware clay or mossed pottery, than the Type A durometer, because the indentor is spring-loaded as in the ASKER Type A, but is a conical shape as in the ASKER Type D.

一般橡膠 , 錐形測頭

18

Constant Loader for Durometer CL-150L

ASKER 橡膠硬度計座 型號: CL-150L

ASKER_CL150L Steady, stable, and reproducible hardness measurement allowed by the flexible joint system.

The problem with manually measuring the hardness of a rubber specimen is that the results may vary with the operator. The CL-150 series eliminates such variations. The flexible joint system makes the pressure foot of the durometer contact perfectly with the test piece and thus enables a precise and reproducible measurement. Furthermore, the models may be used for durometers requiring various measuring loads by replacing the weight.

一般橡膠 , 錐形測頭

19

Constant Loader for Durometer CL-150M

ASKER 橡膠硬度計座 型號: CL-150M

ASKER_CL150M Steady, stable, and reproducible hardness measurement allowed by the flexible joint system.

The problem with manually measuring the hardness of a rubber specimen is that the results may vary with the operator. The CL-150 series eliminates such variations. The flexible joint system makes the pressure foot of the durometer contact perfectly with the test piece and thus enables a precise and reproducible measurement. Furthermore, the models may be used for durometers requiring various measuring loads by replacing the weight.

for: type A(AL), JA(JAL), C(C1L), E(EL), B(BL),D(DL),JC(JCL),CS

20

Constant Loader for Durometer CL-150H

ASKER 橡膠硬度計座 型號: CL-150H

ASKER_CL150H Steady, stable, and reproducible hardness measurement allowed by the flexible joint system.

The problem with manually measuring the hardness of a rubber specimen is that the results may vary with the operator. The CL-150 series eliminates such variations. The flexible joint system makes the pressure foot of the durometer contact perfectly with the test piece and thus enables a precise and reproducible measurement. Furthermore, the models may be used for durometers requiring various measuring loads by replacing the weight.

for: type D(DL), JC(JCL), CS
